Built for Interactive Learning, Community Outreach & Mobile Education

​

The 10-75 Mobile STEM Classroom is a fully self-contained mobile learning platform designed to bring hands-on education directly to schools, communities, and outreach programs.

​

Built on a 2025 Ford E450 chassis with a custom Winnebago body, this vehicle combines classroom workstations, onboard power, ADA accessibility, internet connectivity, climate control, and integrated AV systems into one deployable educational environment.

​

Designed for school districts, municipalities, STEM programs, workforce development initiatives, and community outreach organizations, the Mobile STEM Classroom creates a flexible learning environment wherever education is needed.

Conversion Overview



Rockland 2025 Ford Transit, High Roof, Extended Length DRW, AWD (F4U), White, 148” WB, GVWR 9,950 lbs, 3.5L PFDi V6 Gas, 10-SPD Auto.
​​​

Vehicle Platform

• 2025 Ford E450 chassis

• Winnebago WF425S body

• 176” wheelbase

• 7.3L gas engine

• 14,500 lb GVWR

• Overall length: 26’ 10”

• Interior height: 7’ 5”

• Pneumatic automatic leveling system

• Over-cab storage and underbody compartments

• Mobile wheelchair lift

• Electric entry step and curbside access door

​

Interior Classroom Layout



​Six Student Workstations
The classroom includes six dedicated student workstations, including ADA-accessible seating positions.

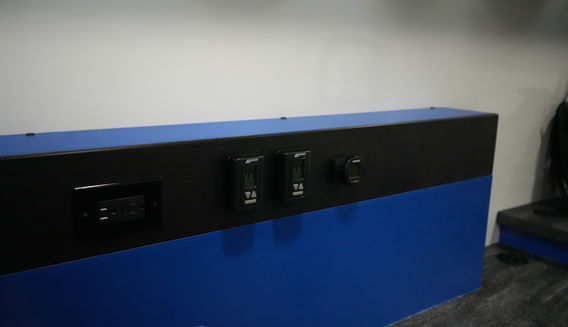

• Each station includes:

• Integrated power access

• USB & USB-C charging

• Laptop workspace

• Overhead storage cabinets

• Dry erase cabinet doors

• Secured rolling office seating

• An additional instructor workstation provides presentation space and additional storage

  Power & Electrical Systems
  Designed for mobile deployment in virtually any environment.

​​

• Onboard Generator System

• Onan 7,000-watt commercial generator

• Sound-insulated compartment

• Shore power compatibility

• Automatic transfer switch

• Dedicated battery charging system

• 2,000-watt sine wave inverter

​

• Shore Power Integration

• 30A marine shoreline connection

• Automatic transfer switching

• LED power indicators

• 25’ marine-grade shoreline cable

​

• Interior & Exterior Power

• 120V duplex outlets throughout

• USB & USB-C charging ports

• Exterior GFI outlets

• Surge-protected workstation circuits

  Connectivity & Technology


• Starlink Internet Integration
  Roof-mounted Starlink satellite internet system with SpaceX dual-band router for reliable connectivity in remote and underserved areas.


• Network Infrastructure

• CAT6 Ethernet connections at every workstation

• HDMI integration throughout the classroom

• Matrix switching system for presentations and displays

  Audio / Visual Systems

  Interior Learning Displays

• Front 32” Smart TV

• Rear 55” Smart TV

• Integrated audio system

• Wireless microphone support

  Exterior Learning Station
  Exterior presentation system located beneath the curbside awning featuring:


• Exterior 55” display

• Integrated sound bar

• Outdoor instructional support

• Weather-protected display compartment

  Climate Control & Comfort
  Built for year-round operation.


• Dual 15,000 BTU rooftop air conditioners

• Fuel-fired onboard heating system

• Roof ventilation system with rain sensors

• Powered reversible roof fans

• Insulated fiberglass walls and ceiling

• Commercial-grade seamless flooring

​

       Accessibility Features

• Mobile wheelchair lift

• ADA-accessible workstation configuration

• Rear curbside lift access

​

     Interior Utility Features
      Built for year-round operation.

       Refresh Area

• Sink and faucet

• Fresh & waste water tanks

• Exterior fill and drain connections

• Heated tank protection

​

Equipment Storage

Integrated cabinets, drawers, and recessed L-track systems provide organized storage and secure transport for educational tools and equipment.

​

Exterior Features

​

• Locking storage compartments

• LED compartment lighting

• Electrically operated awning

• Wind-sensing automatic awning retraction

• Custom exterior graphics and wraps available

​

Safety Systems

​

• ABC fire extinguishers

• CO/smoke detection system

• Emergency egress window

• Reflective safety equipment

​

Ideal Applications

​

• STEM education programs

• Mobile learning labs

• Community outreach initiatives

• Workforce development programs

• School district enrichment programs

• Career and technical education events

• Public education campaigns


​

Bring Learning Directly to the Community


The 10-75 Mobile STEM Classroom is designed to deliver a modern, technology-driven educational experience anywhere learning is needed.
